Dedispersion

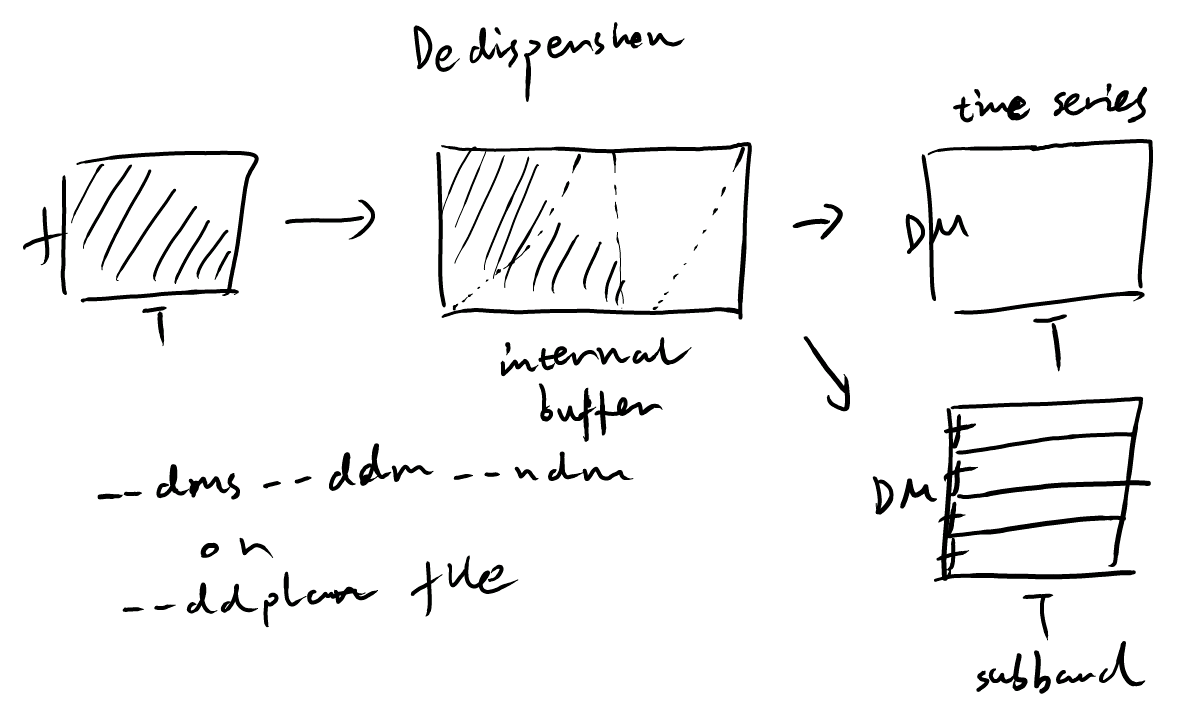

The radio signals from astrophysical sources are dispersed by the interstellar medium (ISM), which can reduce the signal-to-noise ratio (S/N) of the transient signals without dedispersion. The dedispersion process applies the subband dedispersion algorithm to the preprocessed data, generating dedispersed time series for a range of trial DMs. The dispersion range can be set up with the options --dms, --ddm, and --ndm or --ddplan ddplan_file. The format of the ddplan file looks like:

# td fd dms ddm ndm snrloss maxwidth(s)
1 1 0.0 0.1 3344 0.1 0.1
2 1 334.4 0.2 1255 0.1 0.1
4 1 585.2 0.3 1334 0.1 0.1
8 1 985.4 0.5 1674 0.1 0.1
16 1 1821.9 1.0 1179 0.1 0.1
